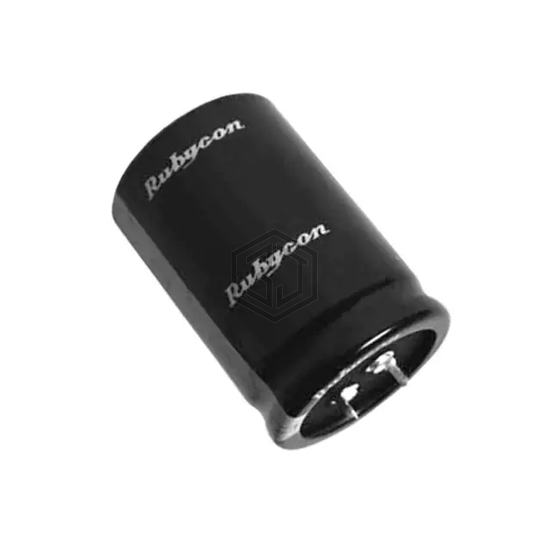

CAP ALUM 1200UF 20% 400V SNAP
400MXK1200MEFCSN35X60 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 8,258
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.99 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.186 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.441" (62.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43255A2128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 76% | View |
| LGN2E122MELC40 | Nichicon | CAP ALUM 1200UF 20% 250V SNAP | 75% | View |
| SLP122M180H5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 180V SNAP | 73% | View |
| LGU2C122MELC | Nichicon | CAP ALUM 1200UF 20% 160V SNAP | 72% | View |
| LGW2D122MELB40 | Nichicon | CAP ALUM 1200UF 20% 200V SNAP | 61% | View |
| EKY-500ELL122MM25S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 54% | View |
