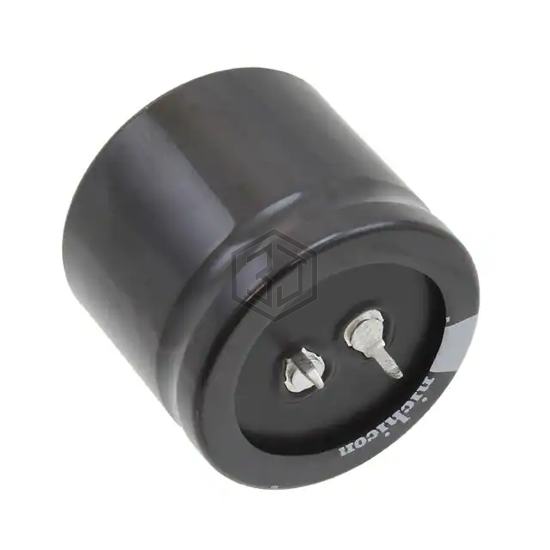

CAP ALUM 1200UF 20% 160V SNAP
LGU2C122MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 140
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.735 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2E122MELC40 | Nichicon | CAP ALUM 1200UF 20% 250V SNAP | 83% | View |
| LGW2D122MELB40 | Nichicon | CAP ALUM 1200UF 20% 200V SNAP | 68% | View |
| EKY-500ELL122MM25S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 62% | View |
| 128KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1200UF 20% 50V RADIAL | 61% | View |
| EKY-350ELL122ML20S | United Chemi-Con | CAP ALUM 1200UF 20% 35V RADIAL | 58% | View |
| B41505A128M2 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 80V SNAP | 56% | View |
