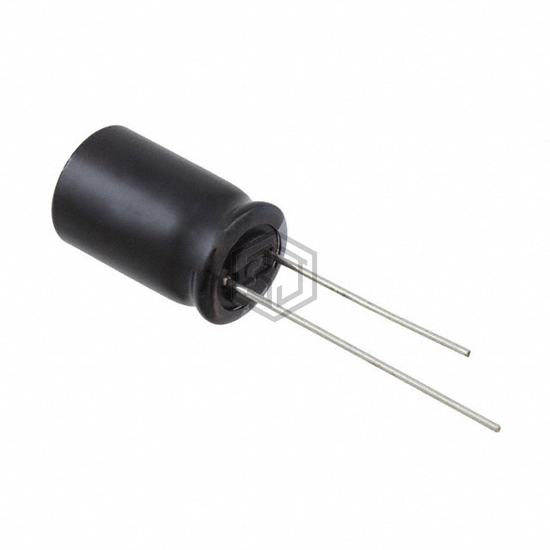

CAP ALUM 22UF 20% 400V RADIAL
400CFX22MEFCG412.5X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 215 mA @ 120 Hz |
| Ripple Current @ High Frequency | 430 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215236229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V RADIAL | 88% | View |
| EKXJ421ELL220MK20S | United Chemi-Con | CAP ALUM 22UF 20% 420V RADIAL | 80% | View |
| UCS2D220MPD1TD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL | 72% | View |
| EEU-TA1J220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V RADIAL | 70% | View |
| 226CKH100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 100V RADIAL | 65% | View |
| UBW1H220MPD1TA | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 53% | View |
Submit your RFQ for 400CFX22MEFCG412.5X25 and get a quote within 24 hours.
