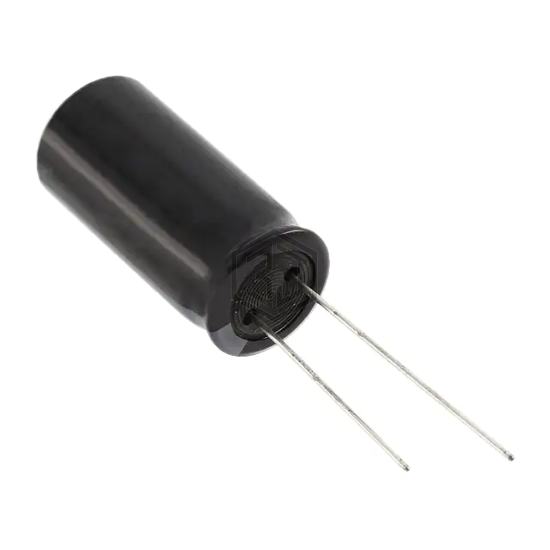

CAP ALUM 39UF 20% 400V RADIAL
400BXW39MEFC14.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 39UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 7,926
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.571" Dia (14.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
400BXW39MEFC14.5X20 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXW39MEFR10X35 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 96% | View |
| UCS2G390MND9 | Nichicon | CAP ALUM 39UF 20% 400V RADIAL | 95% | View |
| 420BXW39MEFR10X40 | Rubycon | CAP ALUM 39UF 20% 420V RADIAL | 95% | View |
| EKXJ501ELL390MK50S | United Chemi-Con | CAP ALUM 39UF 20% 500V RADIAL TH | 89% | View |
| PZ2W390MNN1038 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 80% | View |
| UCY2C390MPD1TD | Nichicon | CAP ALUM 39UF 20% 160V RADIAL | 64% | View |
Submit your RFQ for 400BXW39MEFC14.5X20 and get a quote within 24 hours.
