ALUMINUM ELECTROLYTIC CAPACITORS

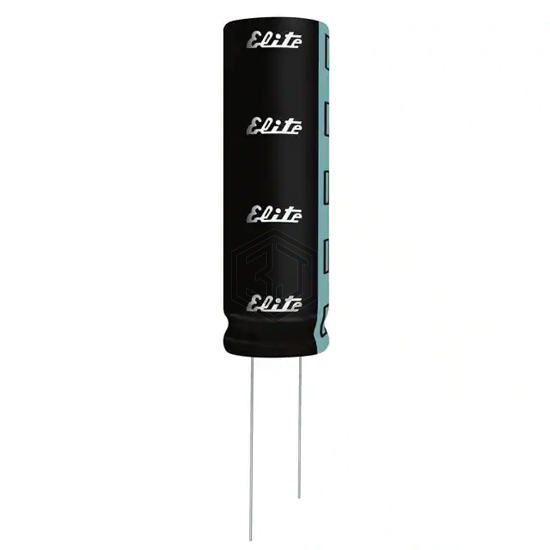

PZ2W390MNN1038 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,974
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 540 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ501ELL390MK50S | United Chemi-Con | CAP ALUM 39UF 20% 500V RADIAL TH | 84% | View |
| UCS2G390MND9 | Nichicon | CAP ALUM 39UF 20% 400V RADIAL | 80% | View |
| 420BXW39MEFR10X40 | Rubycon | CAP ALUM 39UF 20% 420V RADIAL | 77% | View |
| UCY2C390MPD1TD | Nichicon | CAP ALUM 39UF 20% 160V RADIAL | 76% | View |
| 400BXW39MEFR10X35 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 76% | View |
| 630D396M025BB2A | Vishay Sprague | CAP ALUM 39UF 20% 25V AXIAL | 56% | View |
Submit your RFQ for PZ2W390MNN1038 and get a quote within 24 hours.
