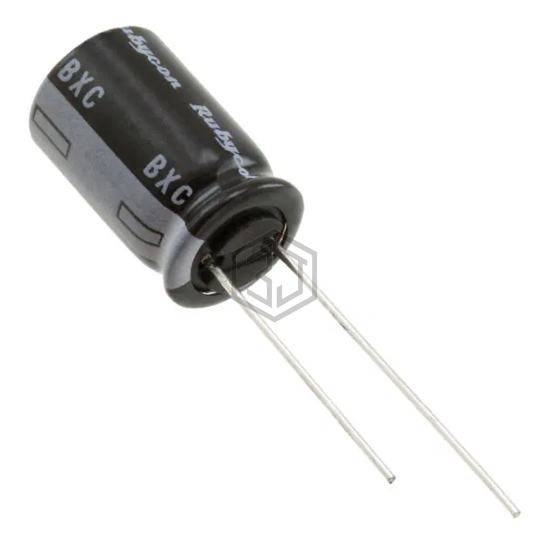

CAP ALUM 3.3UF 20% 400V RADIAL
400BXC3.3MEFCT810X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3.3UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,993
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 350BXC3.3M10X16 | Rubycon | CAP ALUM 3.3UF 20% 350V RADIAL | 91% | View |
| B43888G5335M008 | EPCOS - TDK Electronics | CAP ALUM 450V POLAR | 91% | View |
| MALREKE00AA133HL0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 50V RADIAL | 71% | View |
| UPS2E3R3MPD1TD | Nichicon | CAP ALUM 3.3UF 20% 250V RADIAL | 70% | View |
| MALREKB00AA133J00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 63V RADIAL | 69% | View |
| ECA-2EHG3R3BJ | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 250V RADIAL | 57% | View |
Submit your RFQ for 400BXC3.3MEFCT810X12.5 and get a quote within 24 hours.
