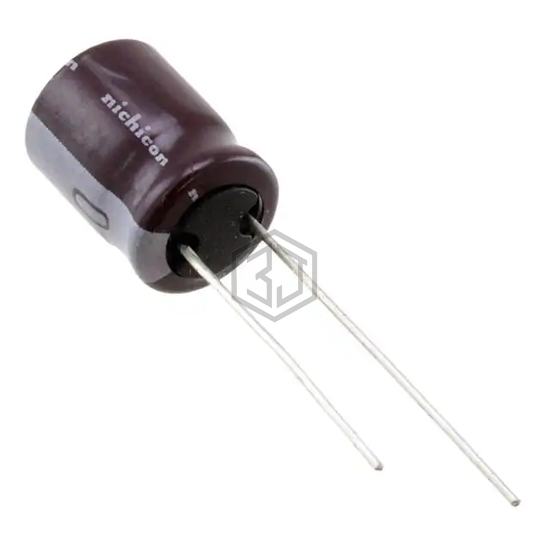

CAP ALUM 3.3UF 20% 250V RADIAL
UPS2E3R3MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 2,820
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 42 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2E3R3MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2D3R3MPH | Nichicon | CAP ALUM 3.3UF 20% 200V RADIAL | 86% | View |
| REA08123R3M200B | KYOCERA AVX | CAP ALUM 200V POLAR | 85% | View |
| UPW2C3R3MPD1TA | Nichicon | CAP ALUM 3.3UF 20% 160V RADIAL | 77% | View |
| 400LLE3.3MEFC8X11.5 | Rubycon | CAP ALUM 3.3UF 20% 400V RADIAL | 77% | View |
| EEU-FC1H3R3 | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 50V RADIAL | 71% | View |
| 860160672004 | Würth Elektronik | CAP ALUM 3.3UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for UPS2E3R3MPD1TD and get a quote within 24 hours.
