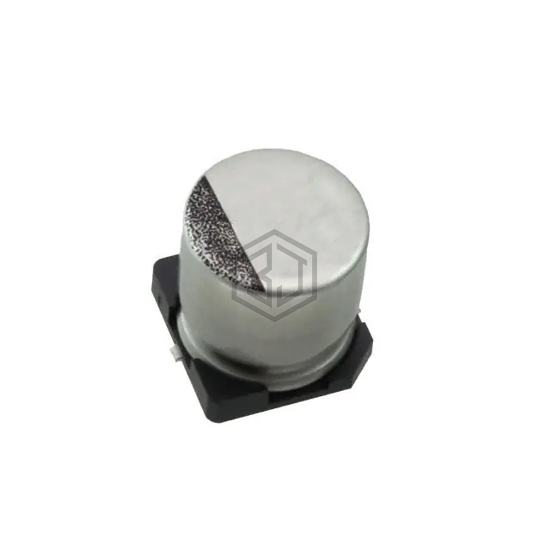

CAP ALUM 1800UF 20% 35V SMD
35TGV1800M18X21.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1800UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 73
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 39mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCX1V182MNS1ZD | Nichicon | CAP ALUM 1800UF 20% 35V SMD | 95% | View |
| UCX1V182MNQ1ZD | Nichicon | CAP ALUM 1800UF 20% 35V SMD | 95% | View |
| EEE-TP1V182M | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V SMD | 77% | View |
| EEE-TP1E182M | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V SMD | 71% | View |
| EEE-TP1E182V | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V SMD | 71% | View |
| 16TGV1800M18X16.5 | Rubycon | CAP ALUM 1800UF 20% 16V SMD | 63% | View |
