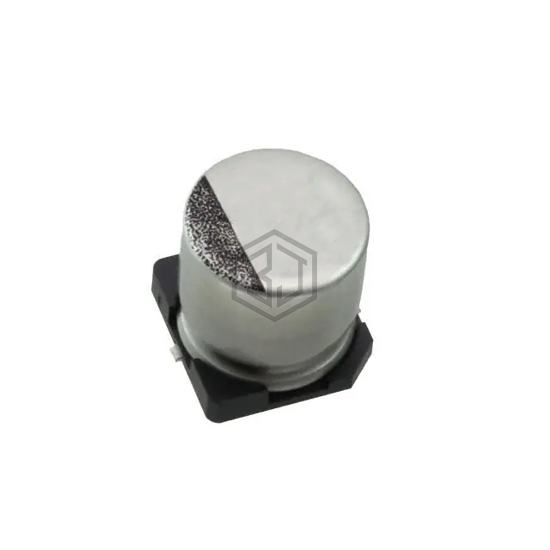

CAP ALUM 1800UF 20% 16V SMD
16TGV1800M18X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1800UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 64mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMHS160ARA202MKG5S | United Chemi-Con | CAP ALUM 2000UF 20% 16V SMD | 91% | View |
| EMHS160GRA202MKG5S | United Chemi-Con | CAP ALUM 2000UF 20% 16V SMD | 91% | View |
| VUX182M1ETR-1616S | Surge | CAP ALUM 25V POLAR | 78% | View |
| UCX1E182MNJ1MS | Nichicon | CAP ALUM 1800UF 20% 25V SMD | 78% | View |
| 35TGV1800M18X21.5 | Rubycon | CAP ALUM 1800UF 20% 35V SMD | 63% | View |
| MAL224699012E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V SMD | 61% | View |
Submit your RFQ for 16TGV1800M18X16.5 and get a quote within 24 hours.
