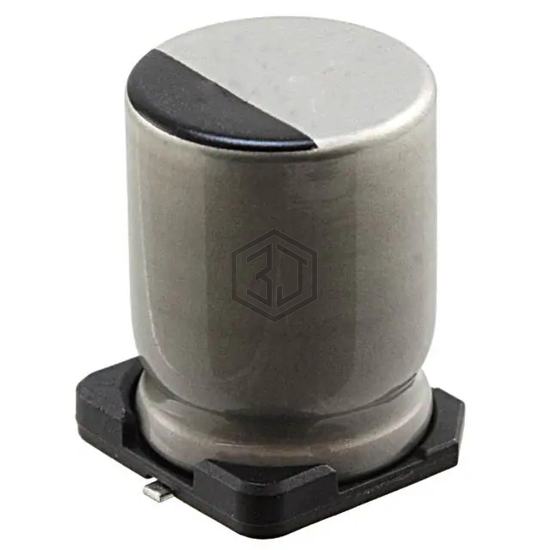

CAP ALUM 22UF 20% 200V SMD
ULH2D220MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 200V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 200 V, package / case Radial, Can - SMD.
In Stock: 3,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 97.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-TG1J220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 78% | View |
| RAVVT220M1UDE7002U | Taiyo Yuden | CAP ALUM 22UF 20% 50V SMD | 76% | View |
| EDT226M050A9LAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 73% | View |
| UCJ1V220MCL1GS | Nichicon | CAP ALUM 22UF 20% 35V SMD | 71% | View |
| EEE-TG1H220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 69% | View |
| UUB1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 53% | View |
Submit your RFQ for ULH2D220MNL1GS and get a quote within 24 hours.
