CAP ALUM POLY 82UF 20% 35V T/H

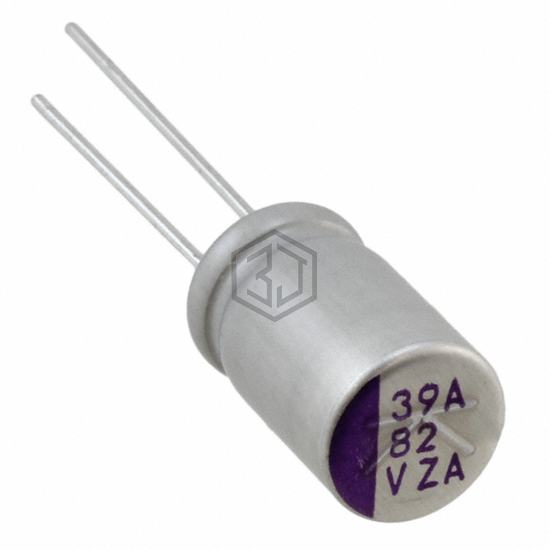

35PZA82M8X12.5 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 82UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,100
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
35PZA82M8X12.5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLX1E820MCL1 | Nichicon | CAP ALUM POLY 82UF 20% 25V T/H | 82% | View |
| APSG250ELL820MF08S | United Chemi-Con | CAP ALUM POLY 82UF 20% 25V T/H | 80% | View |
| 25SEPF82M+TSS | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 25V T/H | 77% | View |
| 25SEPF82M | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 25V T/H | 77% | View |
| 16SEP82M | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 16V T/H | 75% | View |
| 16SEP82M+TSS | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 16V T/H | 75% | View |
Submit your RFQ for 35PZA82M8X12.5 and get a quote within 24 hours.
