Panasonic Electronic Components
CAP ALUM POLY 82UF 20% 25V T/H

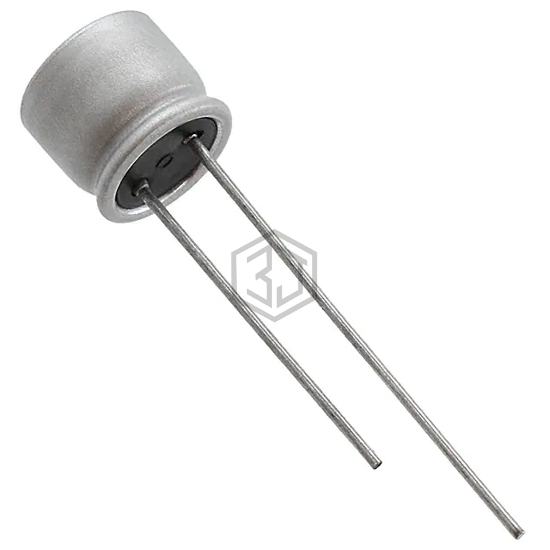

25SEPF82M+TSS is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 82UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,172
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25SEPF82M | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 25V T/H | 100% | View |
| APSG250ELL820MF08S | United Chemi-Con | CAP ALUM POLY 82UF 20% 25V T/H | 98% | View |
| PLX1E820MCL1 | Nichicon | CAP ALUM POLY 82UF 20% 25V T/H | 87% | View |
| 870055675008 | Würth Elektronik | CAP ALUM POLY 82UF 20% 35V T/H | 80% | View |
| 35SEPF82M | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 35V T/H | 76% | View |
| 826ALG050MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 82UF 20% 50V T/H | 74% | View |
Submit your RFQ for 25SEPF82M+TSS and get a quote within 24 hours.
