CAP ALUM 22UF 20% 350V RADIAL

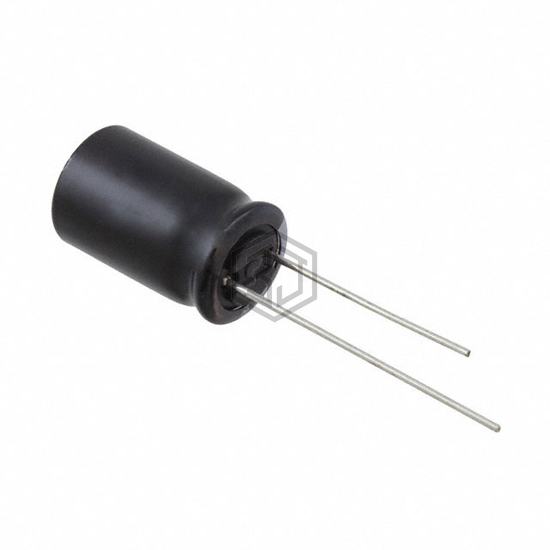

350CFX22MEFC12.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 6,294
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860131278007 | Würth Elektronik | CAP ALUM 22UF 20% 350V RADIAL | 89% | View |
| 250BXC22MEFC10X16 | Rubycon | CAP ALUM 22UF 20% 250V RADIAL | 81% | View |
| 200YXF22MEFC10X20 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 78% | View |
| UPM2G220MHD | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 76% | View |
| UVZ2V220MHH | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 75% | View |
| UCY2V220MHD3 | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 70% | View |
Submit your RFQ for 350CFX22MEFC12.5X20 and get a quote within 24 hours.
