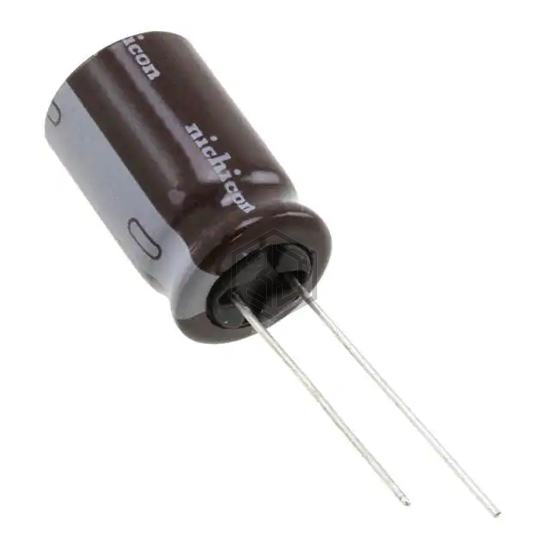

CAP ALUM 22UF 20% 350V RADIAL
UCY2V220MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,483
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 325 mA @ 120 Hz |
| Ripple Current @ High Frequency | 650 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450BXW22MEFR10X30 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL | 87% | View |
| UCY2H220MHD6TN | Nichicon | CAP ALUM 22UF 20% 500V RADIAL | 82% | View |
| UCY2V220MPD9 | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 80% | View |
| UCY2E220MPD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 72% | View |
| MAL214257229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 450V RADIAL | 71% | View |
| MAL215257229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 450V RADIAL | 65% | View |
Submit your RFQ for UCY2V220MHD3 and get a quote within 24 hours.
