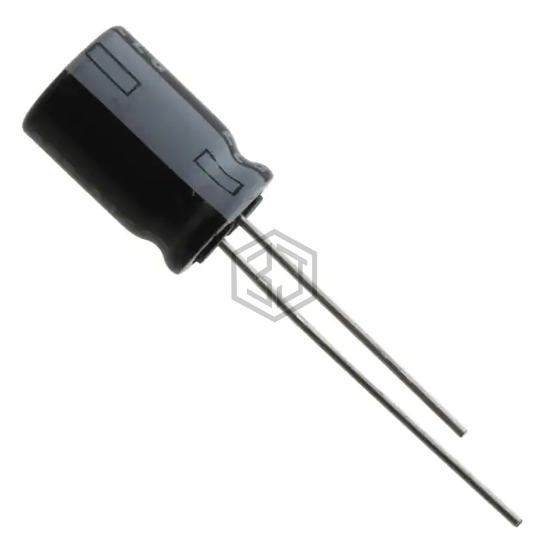

CAP ALUM 220UF 20% 25V RADIAL
25ZLG220MEFCTA8X11.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,513
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | 36 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215056221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 74% | View |
| 860040574006 | Würth Elektronik | CAP ALUM 220UF 20% 35V RADIAL | 71% | View |
| RZW221M1EBK-0811S | SURGE | CAP ALUM 220UF 20% 25V RADIAL | 70% | View |
| EGXL500EC5221MJ20S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 67% | View |
| 678D227M050DM5D | Vishay Sprague | CAP ALUM 220UF 20% 50V RADIAL | 66% | View |
| EKYB630ELL221MJ20S | United Chemi-Con | CAP ALUM 220UF 20% 63V RADIAL | 65% | View |
Submit your RFQ for 25ZLG220MEFCTA8X11.5 and get a quote within 24 hours.
