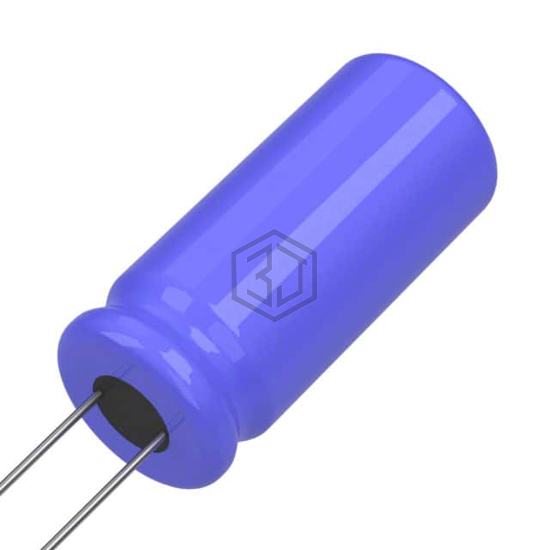

CAP ALUM 220UF 20% 50V RADIAL
678D227M050DM5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 220UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,909
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 240mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 651 mA @ 120 Hz |
| Ripple Current @ High Frequency | 930 mA @ 100 kHz |
| Impedance | 71 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
