CAP ALUM 4700UF 20% 25V SNAP

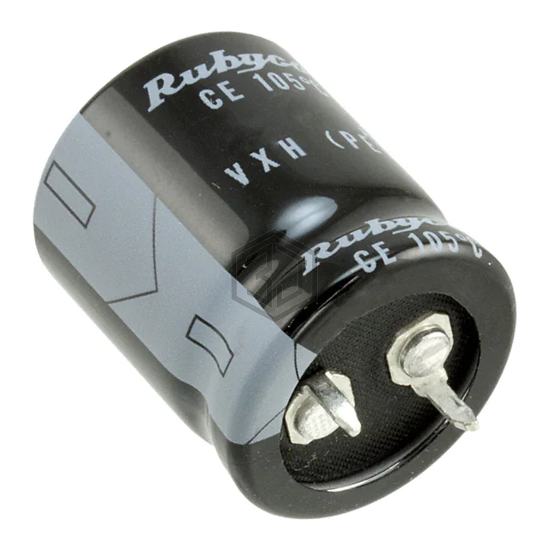

25VXG4700MEFCSN22X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4700UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 6,671
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.7825 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-1CHG472B | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 84% | View |
| MAL214696475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 82% | View |
| MAL215856472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V SNAP | 81% | View |
| 10YXF4700MEFCGC16X25 | Rubycon | CAP ALUM 4700UF 20% 10V RADIAL | 77% | View |
| EEU-FC0J472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 6.3V RADIAL | 69% | View |
| 860160381045 | Würth Elektronik | CAP ALUM 4700UF 20% 16V RADIAL | 66% | View |
Submit your RFQ for 25VXG4700MEFCSN22X30 and get a quote within 24 hours.
