Panasonic Electronic Components

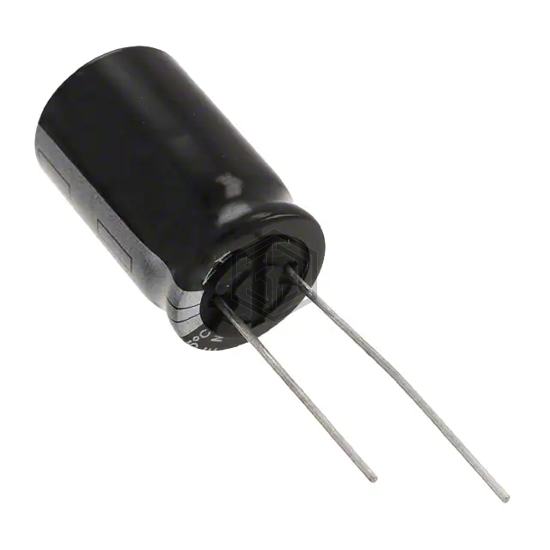

CAP ALUM 4700UF 20% 16V RADIAL
ECA-1CHG472B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,032
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.702 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160381045 | Würth Elektronik | CAP ALUM 4700UF 20% 16V RADIAL | 83% | View |
| 517D478M025FR6AE3 | Vishay Sprague | CAP ALUM 4700UF 20% 25V RADIAL | 81% | View |
| ECA-1AHG472B | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RADIAL | 78% | View |
| EEU-HD1A472B | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RADIAL | 78% | View |
| UBX1A472MHL | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 67% | View |
| EEU-FC0J472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 6.3V RADIAL | 67% | View |
