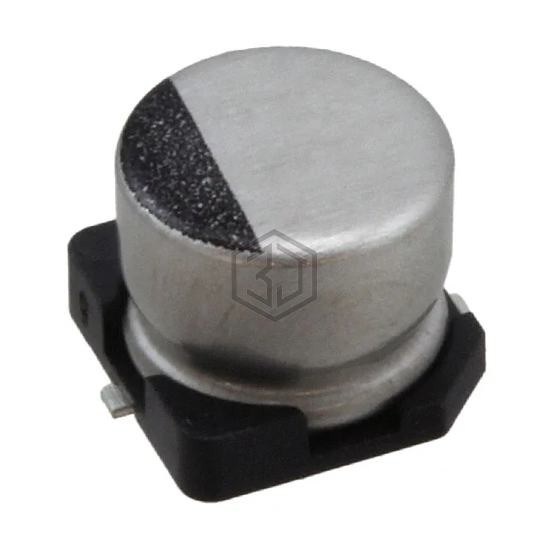

CAP ALUM 220UF 20% 25V SMD
25SKV220M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,060
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 353 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCQ1E221MCL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 89% | View |
| 35JZV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 78% | View |
| MAL215097511E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V SMD | 77% | View |
| EEE-FT1C221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 62% | View |
| EEE-FK1H221GL | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V SMD | 60% | View |
| UT227M050HGKTA | Aillen | CAP. ALUM 220UF 50V 20% SMD | 58% | View |
