Panasonic Electronic Components

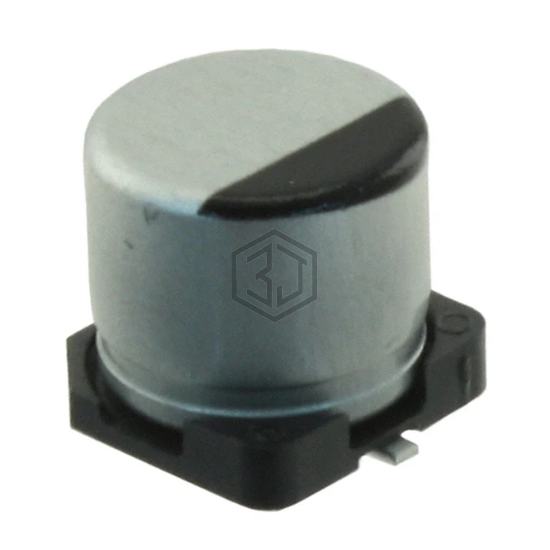

CAP ALUM 220UF 20% 16V SMD
EEE-FT1C221AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 260mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EXV227M016A9HAA | KEMET | CAP ALUM 220UF 20% 16V SMD | 98% | View |
| MAL215097511E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V SMD | 86% | View |
| EEE-FP0J221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V SMD | 79% | View |
| UCQ1E221MCL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 75% | View |
| UT227M050HGKTA | Aillen | CAP. ALUM 220UF 50V 20% SMD | 66% | View |
| 25SKV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 25V SMD | 62% | View |
Submit your RFQ for EEE-FT1C221AP and get a quote within 24 hours.
