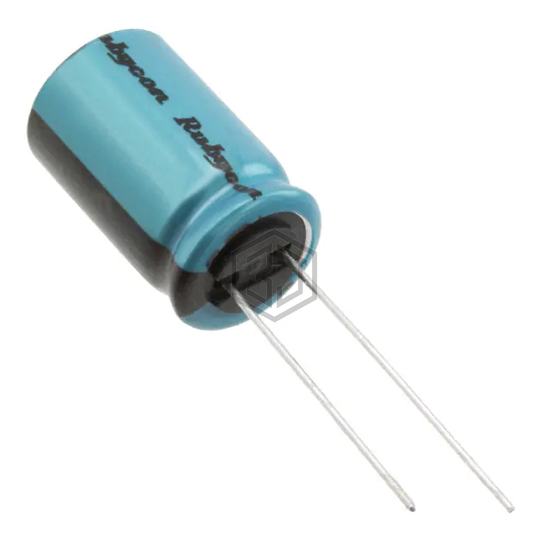

CAP ALUM 1000UF 20% 25V RADIAL
25RX301000M12.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | 55 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL226056102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 86% | View |
| UBX1V102MHL | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 84% | View |
| EEU-TP1E102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 80% | View |
| UBW1A102MPD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 79% | View |
| MAL226060102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 78% | View |
| UBW1C102MHD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 75% | View |
Submit your RFQ for 25RX301000M12.5X20 and get a quote within 24 hours.
