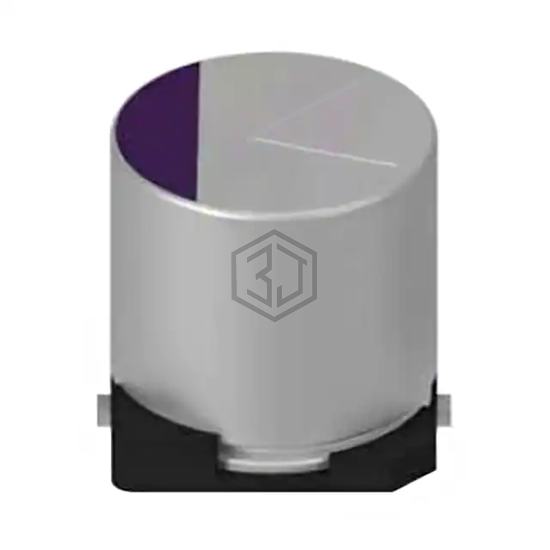

CAP ALUM POLY HYB 100UF 25V SMD
25PFV100M6.3X8 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY HYB 100UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,591
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GYA1E101MCW1GS | Nichicon | CAP ALUM POL HY 100UF 20% 25V SM | 74% | View |
| GYC1E101MCQ1GS | Nichicon | CAP ALUM POL HY 100UF 20% 25V SM | 71% | View |
| HHXE250GRA101MF80G | Chemi-Con | CAP ALUMHYB 100UF 20% 25V SMD | 64% | View |
| GYC1V101MCW1GS | Nichicon | CAP ALUMHYB 100UF 20% 35V SMD | 61% | View |
| GYC1H101MCW1GS | Nichicon | CAP ALUM POL HY 100UF 20% 50V SM | 50% | View |
| EEH-ZS1J101V | Panasonic Electronic Components | CAP POLYMER HYBRID 100UF 63V SMD | 50% | View |
