CAP ALUM 330000UF 20% 25V SCREW

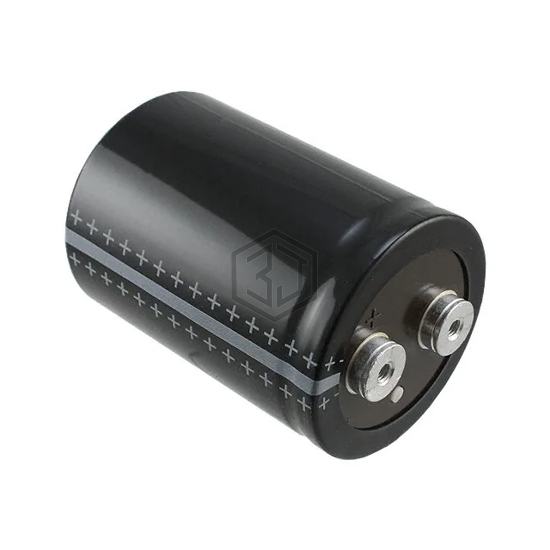

B41580A5330M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 330000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,787
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 4.5mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 5.1 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 5.677" (144.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25LSW330000MEFC77X151 | Rubycon | CAP ALUM 330000UF 20% 25V SCREW | 97% | View |
| LNT1E334MSE | Nichicon | CAP ALUM 330000UF 20% 25V SCREW | 95% | View |
| LNT1E334MSEN | Nichicon | CAP ALUM 330000UF 20% 25V SCREW | 95% | View |
| E32D250HPN334MEA5U | United Chemi-Con | CAP ALUM 330000UF 20% 25V SCREW | 94% | View |
| LNT1C334MSE | Nichicon | CAP ALUM 330000UF 20% 16V SCREW | 77% | View |
| LNT1C334MSEN | Nichicon | CAP ALUM 330000UF 20% 16V SCREW | 77% | View |
Submit your RFQ for B41580A5330M003 and get a quote within 24 hours.
