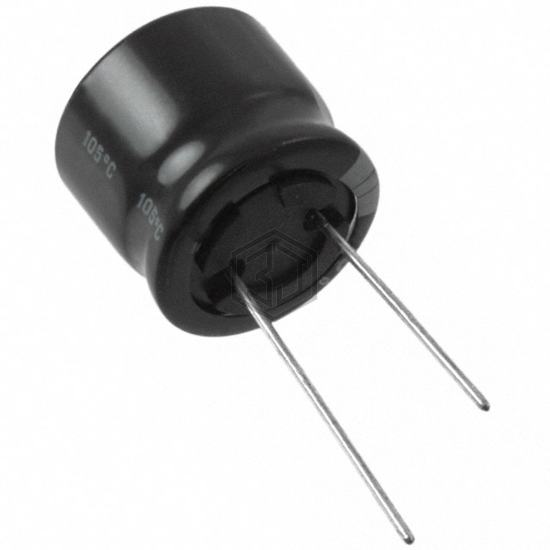

CAP ALUM 82UF 20% 200V RADIAL
200BXF82M18X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 82UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,637
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 620 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
200BXF82M18X16 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPZ2D820MND9 | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 99% | View |
| 250BXC82MEFCGC16X20 | Rubycon | CAP ALUM 82UF 20% 250V RADIAL | 92% | View |
| 200KXW82MEFC10X30 | Rubycon | CAP ALUM 82UF 20% 200V RADIAL | 86% | View |
| EKXJ251ELL820MJ45S | United Chemi-Con | CAP ALUM 82UF 20% 250V RADIAL | 84% | View |
| UCS2G820MHD | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 74% | View |
| MAL225917829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 450V SNAP | 67% | View |
