CAP ALUM 82UF 20% 400V RADIAL

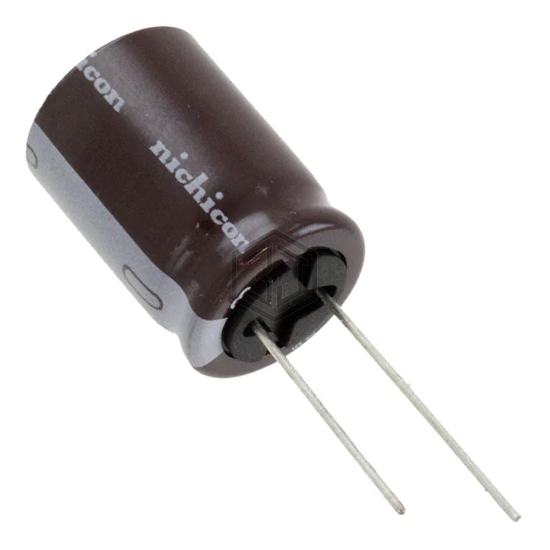

UCS2G820MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 762.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.525 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXW82MEFR14.5X35 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 95% | View |
| EKXJ401ELL820MM25S | United Chemi-Con | CAP ALUM 82UF 20% 400V RADIAL | 95% | View |
| 420LXW82MEFR12.5X40 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 93% | View |
| MAL225917829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 450V SNAP | 90% | View |
| MAL219367829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 450V SNAP | 90% | View |
| UCY2E820MHD9TO | Nichicon | CAP ALUM 82UF 20% 250V RADIAL | 75% | View |
