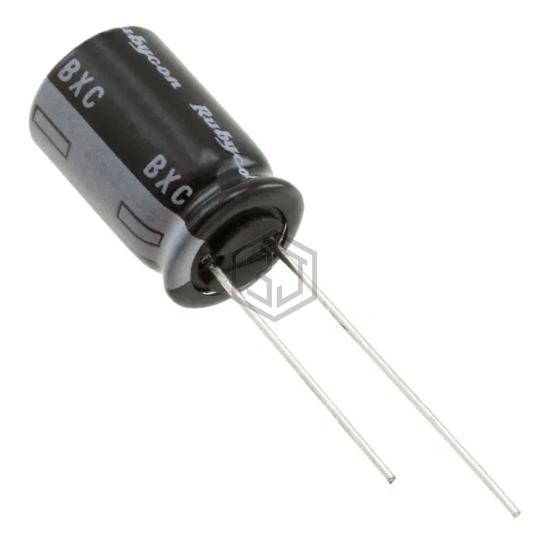

CAP ALUM 10UF 20% 200V RADIAL
200BXC10MEFC10X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 96 mA @ 120 Hz |
| Ripple Current @ High Frequency | 320 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2E100MHD | Nichicon | CAP ALUM 10UF 20% 250V RADIAL | 76% | View |
| UCY2H100MHD | Nichicon | CAP ALUM 10UF 20% 500V RADIAL | 67% | View |
| ESU106M350AH4KA | KEMET | CAP ALUM RAD 105C | 66% | View |
| UBX1V100MPL | Nichicon | CAP ALUM 10UF 20% 35V RADIAL | 62% | View |
| 200PX10MEFC8X11.5 | Rubycon | CAP ALUM 10UF 20% 200V RADIAL | 61% | View |
| 100YXM10MEFRTA6.3X11 | Rubycon | CAP ALUM 10UF 20% 100V RADIAL | 51% | View |
Submit your RFQ for 200BXC10MEFC10X12.5 and get a quote within 24 hours.
