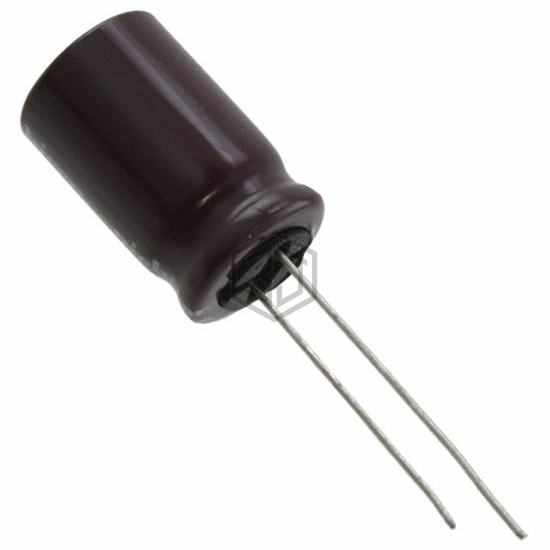

CAP ALUM 10UF 20% 250V RADIAL
UPJ2E100MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 6,995
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 98 mA @ 120 Hz |
| Ripple Current @ High Frequency | 156.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2E100MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK100M250ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 250V RADIAL | 100% | View |
| UKL1H100MDDANATA | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 68% | View |
| EGXE500ELL100MH12D | United Chemi-Con | CAP ALUM 10UF 20% 50V RADIAL | 68% | View |
| 200PX10MEFC8X11.5 | Rubycon | CAP ALUM 10UF 20% 200V RADIAL | 66% | View |
| REA0611100M100K | KYOCERA AVX | CAP ALUM 10UF 20% 100V RADIAL TH | 60% | View |
| ESH106M063AC3AA | KEMET | CAP ALUM 10UF 20% 63V RADIAL | 57% | View |
Submit your RFQ for UPJ2E100MHD and get a quote within 24 hours.
