CAP ALUM 1000UF 20% 16V RADIAL

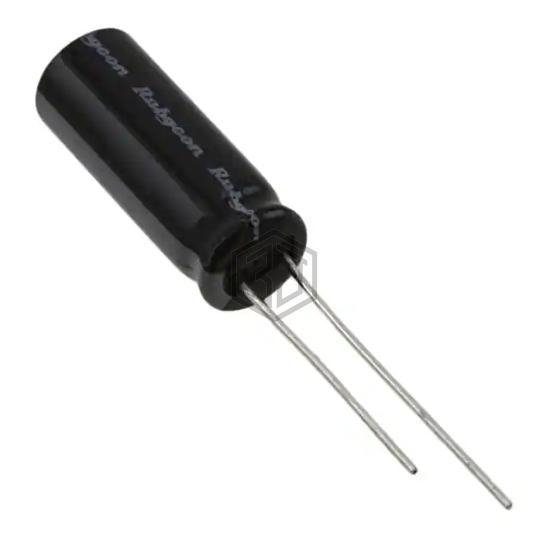

16ZLJ1000M8X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,921
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.176 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.96 A @ 100 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL219055102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 83% | View |
| EEU-FC1E102L | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 82% | View |
| SEK102M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 25V RADIAL | 71% | View |
| EKMQ101ELL102MMP1S | United Chemi-Con | CAP ALUM 1000UF 20% 100V RADIAL | 67% | View |
| UBT1H102MHD8 | Nichicon | CAP ALUM 1000UF 20% 50V RADIAL | 67% | View |
| MAL214061102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 66% | View |
Submit your RFQ for 16ZLJ1000M8X20 and get a quote within 24 hours.
