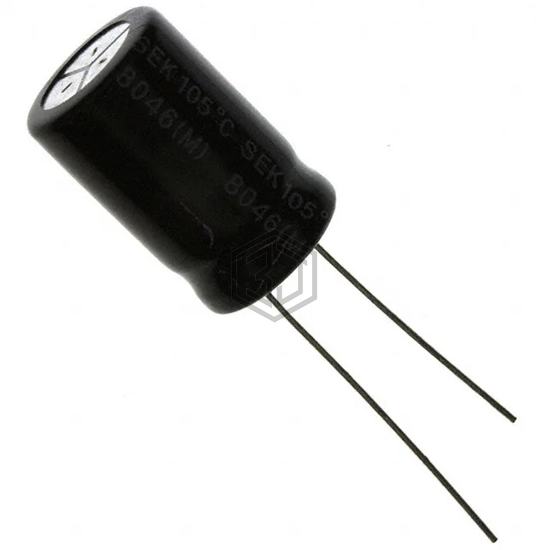

Cornell Dubilier Electronics (CDE)
CAP ALUM 1000UF 20% 25V RADIAL
SEK102M025ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 10,157
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 210mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 858 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896D5108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 25V RADIAL | 100% | View |
| ELXY250ELL102MK20S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 100% | View |
| ELXY250EMC102MK25S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 95% | View |
| EEU-FC1E102L | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 85% | View |
| MAL219055102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 79% | View |
| B41858C7108M1 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 78% | View |
Submit your RFQ for SEK102M025ST and get a quote within 24 hours.
