CAP ALUM 1200UF 20% 16V RADIAL

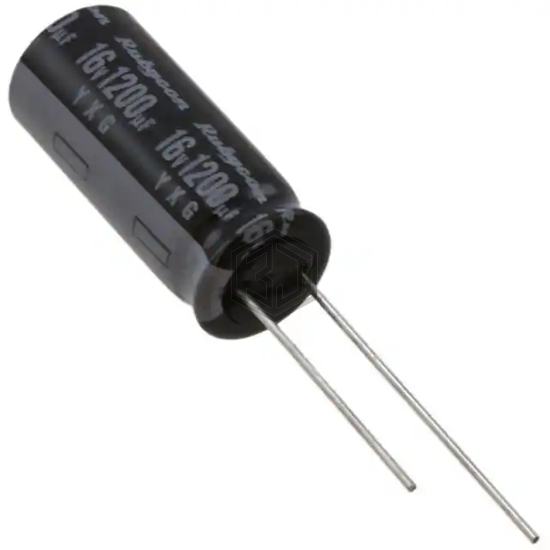

16YXG1200MEFC10X23 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 990 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz |
| Impedance | 42 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C6128M9 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 71% | View |
| LSG122M2A---2530S | Surge | CAP ALUM 1.2MF 20% 100V SNAP IN | 65% | View |
| UHE0J122MPT | Nichicon | CAP ALUM 1200UF 20% 6.3V RADIAL | 63% | View |
| LXY50VB122M16X35LL | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 62% | View |
| ELXV500ELL122ML35S | Chemi-Con | CAP ALUM 1.2MF 20% 50V RADIAL TH | 61% | View |
| 860040780019 | Würth Elektronik | CAP ALUM 1200UF 20% 63V RADIAL | 51% | View |
Submit your RFQ for 16YXG1200MEFC10X23 and get a quote within 24 hours.
