CAP ALUM 1200UF 20% 6.3V RADIAL

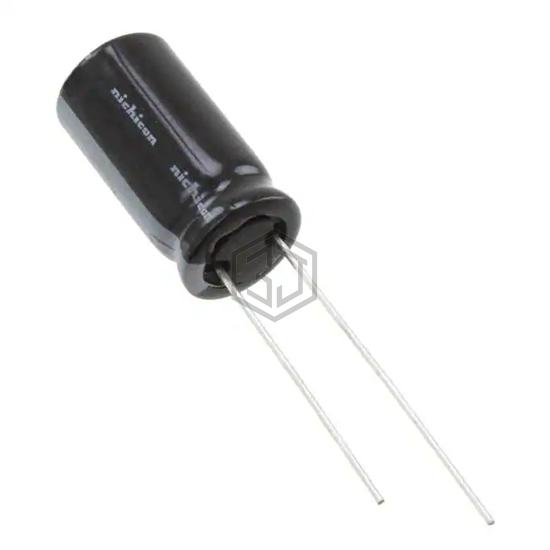

UHE0J122MPT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,997
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 69 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J122MPT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FS1A122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 73% | View |
| 16YXG1200MEFC10X23 | Rubycon | CAP ALUM 1200UF 20% 16V RADIAL | 63% | View |
| EEU-FC1C122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 16V RADIAL | 63% | View |
| EEU-FK1C122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 16V RAD TH | 59% | View |
| 80KXF1200MEFC30X20 | Rubycon | CAP ALUM 1200UF 20% 80V SNAP | 55% | View |
| B41858C6128M9 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 52% | View |
Submit your RFQ for UHE0J122MPT and get a quote within 24 hours.
