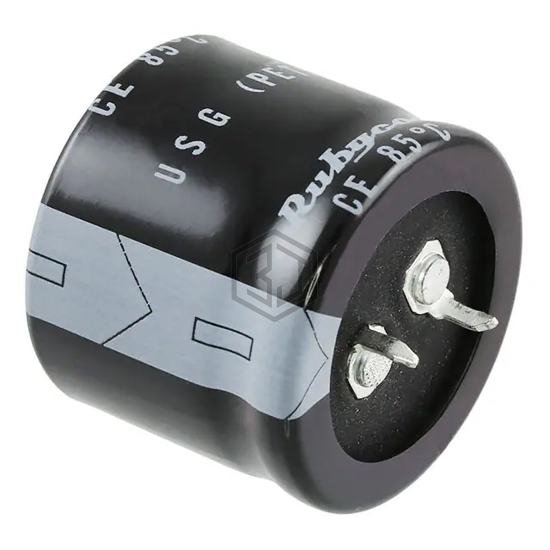

CAP ALUM 33000UF 20% 16V SNAP
16USG33000MEFCSN35X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 1,081
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.314 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LLS1C333MELA | Nichicon | CAP ALUM 33000UF 20% 16V SNAP | 100% | View |
| LGU1C333MELC | Nichicon | CAP ALUM 33000UF 20% 16V SNAP | 88% | View |
| 383LX333M025N042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 33000UF 20% 25V SNAP | 86% | View |
| EKMH250VNN333MA50W | United Chemi-Con | CAP ALUM 33000UF 20% 25V SNAP | 84% | View |
| LKS1E333MESC | Nichicon | CAP ALUM 33000UF 20% 25V SNAP | 76% | View |
| ALC80D333CF025 | KEMET | CAP ALUM 33000UF 20% 25V SNAP | 63% | View |
Submit your RFQ for 16USG33000MEFCSN35X30 and get a quote within 24 hours.
