Cornell Dubilier Electronics (CDE)
CAP ALUM 33000UF 20% 25V SNAP

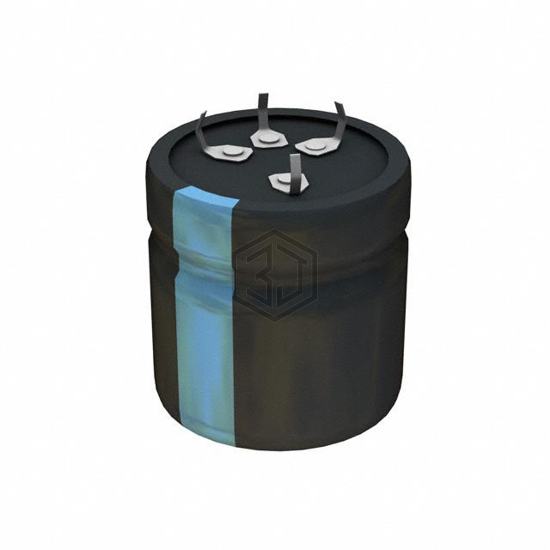

383LX333M025N042 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 33000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 8,438
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 31mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.33 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VNN333MA50W | United Chemi-Con | CAP ALUM 33000UF 20% 25V SNAP | 98% | View |
| ALC80D333CF025 | KEMET | CAP ALUM 33000UF 20% 25V SNAP | 76% | View |
| LGU1C333MELC | Nichicon | CAP ALUM 33000UF 20% 16V SNAP | 74% | View |
| EKMH160VQT333MB25U | United Chemi-Con | CAP ALUM 33000UF 20% 16V SNAP | 65% | View |
| B41505A3339M000 | EPCOS - TDK Electronics | CAP ALUM 33000UF 20% 10V SNAP | 60% | View |
| SLP333M010C4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 33000UF 20% 10V SNAP | 58% | View |
Submit your RFQ for 383LX333M025N042 and get a quote within 24 hours.
