CAP ALUM 220000UF 20% 16V SCREW

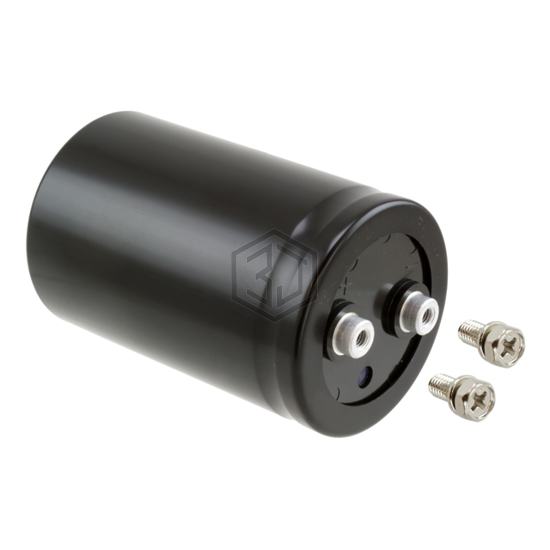

16LSQ220000MEFC64X99 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220000UF 20% 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,687
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.876 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.110" (28.20mm) |
| Size / Dimension | 2.520" Dia (64.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1C224MSEN | Nichicon | CAP ALUM 220000UF 20% 16V SCREW | 92% | View |
| B41580A5220M000 | EPCOS - TDK Electronics | CAP ALUM 220000UF 20% 25V SCREW | 72% | View |
| MAL210156224E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220000UF 20% 25V SCREW | 71% | View |
| MAL210176224E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220000UF 20% 25V SCREW | 71% | View |
| LNT1V224MSEB | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 63% | View |
| LNR1H224MSEB | Nichicon | CAP ALUM 220000UF 20% 50V SCREW | 62% | View |
Submit your RFQ for 16LSQ220000MEFC64X99 and get a quote within 24 hours.
