Vishay Beyschlag/Draloric/BC Components

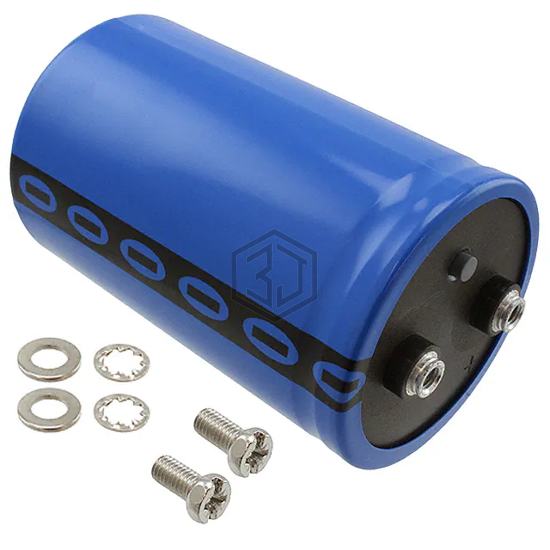

CAP ALUM 220000UF 20% 25V SCREW
MAL210156224E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 220000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,531
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 6mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20.2 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 5 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.559" Dia (65.00mm) |
| Height - Seated (Max) | 4.358" (110.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41580A5220M000 | EPCOS - TDK Electronics | CAP ALUM 220000UF 20% 25V SCREW | 98% | View |
| LNT1E224MSEN | Nichicon | CAP ALUM 220000UF 20% 25V SCREW | 94% | View |
| LNT1V224MSEN | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 81% | View |
| LNT1V224MSEB | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 81% | View |
| E32D350HLN224MDB7U | United Chemi-Con | CAP ALUM 220000UF 20% 35V SCREW | 71% | View |
| MAL210178224E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220000UF 20% 63V SCREW | 69% | View |
Submit your RFQ for MAL210156224E3 and get a quote within 24 hours.
