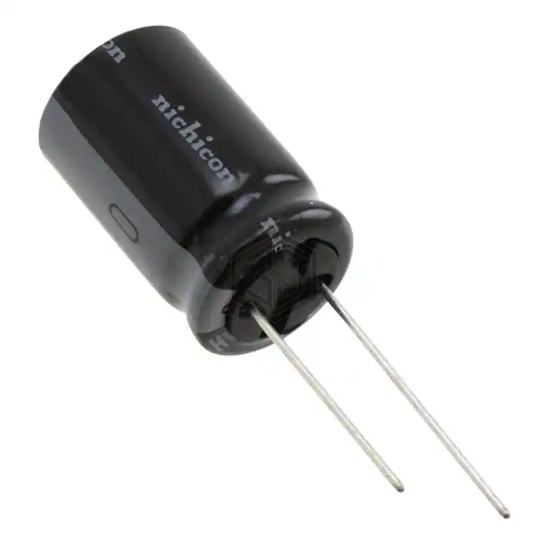

CAP ALUM 820UF 20% 80V RADIAL
UHW1K821MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 7,057
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHW1K821MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW821M1JBK-1825S | Surge | CAP ALUM 63V POLAR | 91% | View |
| RXK821M1JBK-1636S | Surge | CAP ALUM 63V POLAR | 87% | View |
| LGU2A821MELZ | Nichicon | CAP ALUM 820UF 20% 100V SNAP | 79% | View |
| 100ZLH820MEFCGC18X40 | Rubycon | CAP ALUM 820UF 20% 100V RADIAL | 75% | View |
| UPA1E821MPD1TD | Nichicon | CAP ALUM 820UF 20% 25V RADIAL | 64% | View |
| MAL225932821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 200V SNAP | 50% | View |
