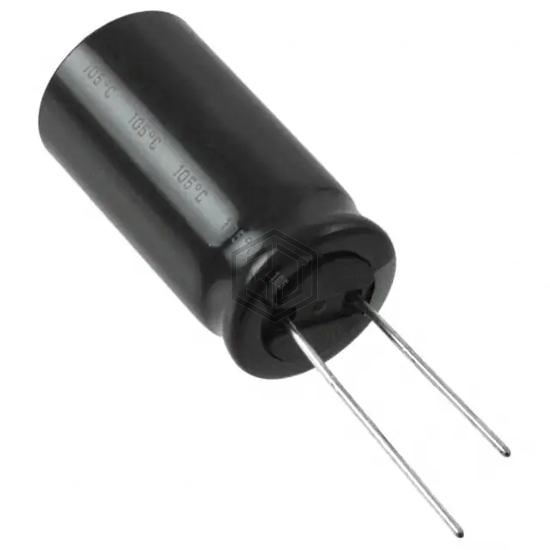

CAP ALUM 680UF 20% 100V RADIAL
100ZLH680MEFCGC16X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,364
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.573 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.86 A @ 100 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80ZLJ680M18X25 | Rubycon | CAP ALUM 680UF 20% 80V RADIAL | 85% | View |
| LGU2C681MELA | Nichicon | CAP ALUM 680UF 20% 160V SNAP | 81% | View |
| 381LQ681M250K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 250V SNAP | 73% | View |
| EV1E681MP30818EF5U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
| MAL215060681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 58% | View |
| 50YXG680MEFC16X20 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for 100ZLH680MEFCGC16X40 and get a quote within 24 hours.
