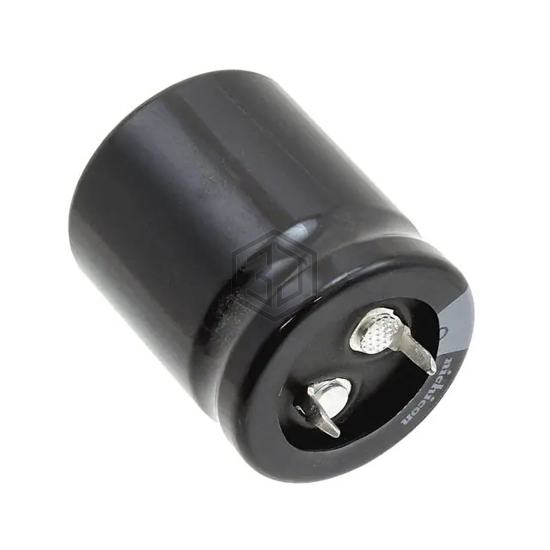

CAP ALUM 680UF 20% 160V SNAP
LGU2C681MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 7,450
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.82 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.73 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200MXC680MEFCSN25X35 | Rubycon | CAP ALUM 680UF 20% 200V SNAP | 92% | View |
| 80ZLJ680M18X25 | Rubycon | CAP ALUM 680UF 20% 80V RADIAL | 70% | View |
| B43508A5687M002 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 450V SNAP | 62% | View |
| EGXF630ELL681MU25S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL TH | 60% | View |
| B43642A9687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 59% | View |
| EV1E681MP30818EF5U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 57% | View |
Submit your RFQ for LGU2C681MELA and get a quote within 24 hours.
