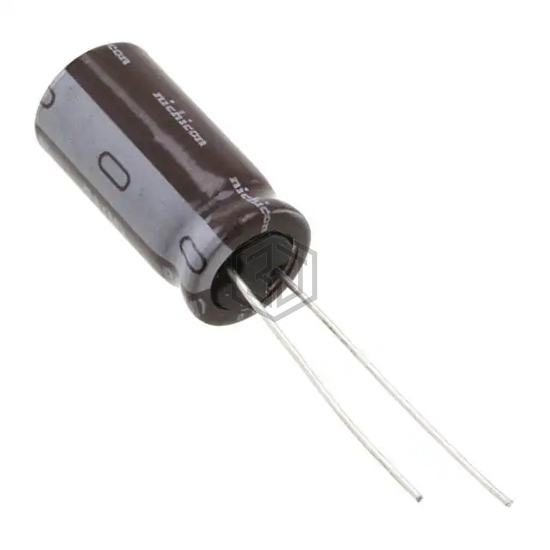

CAP ALUM 560UF 20% 35V RADIAL
UPA1V561MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,188
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.118 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.49 A @ 100 kHz |
| Impedance | 35 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1V561MPD1TD | Nichicon | CAP ALUM 560UF 20% 35V RADIAL | 100% | View |
| B41888C7567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 35V RADIAL | 95% | View |
| B41890A7567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 35V RADIAL | 87% | View |
| EEU-FK1E561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL TH | 79% | View |
| ELXY630ELL561MK40S | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 72% | View |
| MAL224658561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 63V RADIAL | 72% | View |
Submit your RFQ for UPA1V561MPD and get a quote within 24 hours.
