CAP ALUM 180UF 20% 100V RADIAL

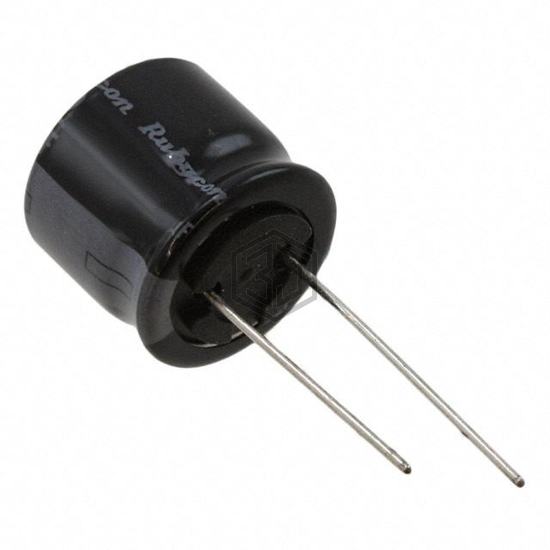

100YXH180MEFCGC18X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 180UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,005
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 515 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.03 A @ 100 kHz |
| Impedance | 96 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXG180MEFCG412.5X25 | Rubycon | CAP ALUM 180UF 20% 100V RADIAL | 86% | View |
| 50YXH180MEFCTA8X20 | Rubycon | CAP ALUM 180UF 20% 50V RADIAL | 76% | View |
| UCY2D181MHD6 | Nichicon | CAP ALUM 180UF 20% 200V RADIAL | 61% | View |
| 25ZLQ180MEFC6.3X11 | Rubycon | CAP ALUM 180UF 20% 25V RADIAL | 60% | View |
| 381LX181M315J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 315V SNAP | 60% | View |
| ELXY250ELL181MJC5S | United Chemi-Con | CAP ALUM 180UF 20% 25V RADIAL | 54% | View |
Submit your RFQ for 100YXH180MEFCGC18X16 and get a quote within 24 hours.
