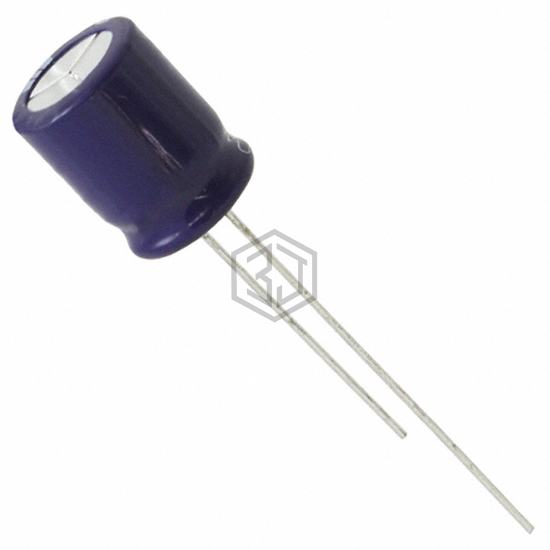

CAP ALUM 180UF 20% 25V RADIAL
ELXY250ELL181MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 180UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 245
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 625 mA @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160374015 | Würth Elektronik | CAP ALUM 180UF 20% 16V RADIAL | 66% | View |
| ELXZ630ELL181MJ20S | United Chemi-Con | CAP ALUM 180UF 20% 63V RADIAL | 65% | View |
| RXK181M1CBK-0615S | Surge | CAP ALUM 16V POLAR | 63% | View |
| ELXV800ELL181ML15S | United Chemi-Con | CAP ALUM 180UF 20% 80V RADIAL | 56% | View |
| EEU-FC1J181B | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 55% | View |
| 187KXM100MQU | Cornell Dubilier / Illinois Capacitor | CAP ALUM 180UF 20% 100V RADIAL | 51% | View |
Submit your RFQ for ELXY250ELL181MJC5S and get a quote within 24 hours.
