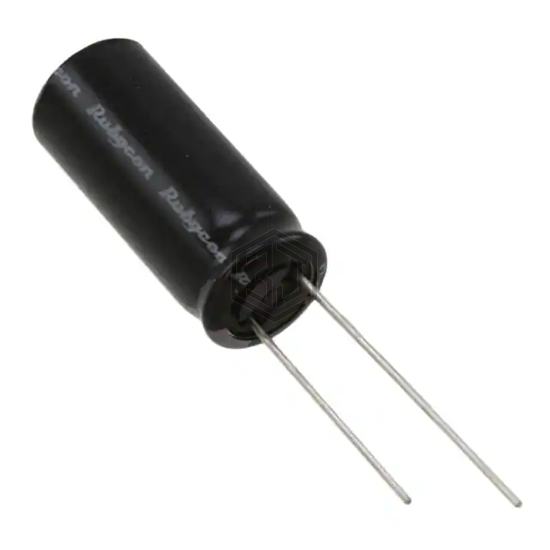

CAP ALUM 100UF 20% 100V RADIAL
100YXH100MEFC10X23 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 3,607
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 297.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 595 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXG100MEFC12.5X20 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 100% | View |
| UPS2A101MHD | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 97% | View |
| MALREKB00PB310JL0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V RADIAL | 74% | View |
| MALREKC00DD310HG0F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 74% | View |
| UHC0J101MDD | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 71% | View |
| 30D107G015DC2A | Vishay Sprague | CAP ALUM 100UF 15V AXIAL | 56% | View |
Submit your RFQ for 100YXH100MEFC10X23 and get a quote within 24 hours.
