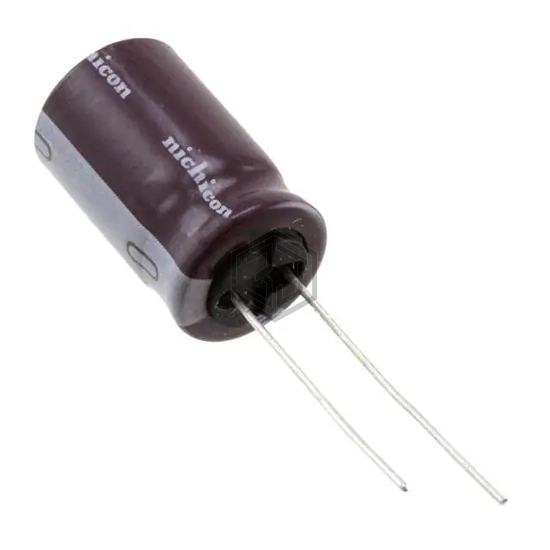

CAP ALUM 100UF 20% 100V RADIAL
UPS2A101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,654
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 290 mA @ 120 Hz |
| Ripple Current @ High Frequency | 580 mA @ 100 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2A101MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00DE310L00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 100V RADIAL | 96% | View |
| MALREKB00PB310JL0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V RADIAL | 75% | View |
| 107KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 50V RADIAL | 74% | View |
| B41693A9107Q9 | EPCOS - TDK Electronics | CAP ALUM 100UF 100V AXIAL | 74% | View |
| MALREKC00DD310HG0F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 71% | View |
| 860080373005 | Würth Elektronik | CAP ALUM 100UF 20% 16V RADIAL | 58% | View |
Submit your RFQ for UPS2A101MHD and get a quote within 24 hours.
