CAP ALUM 120UF 20% 100V RADIAL

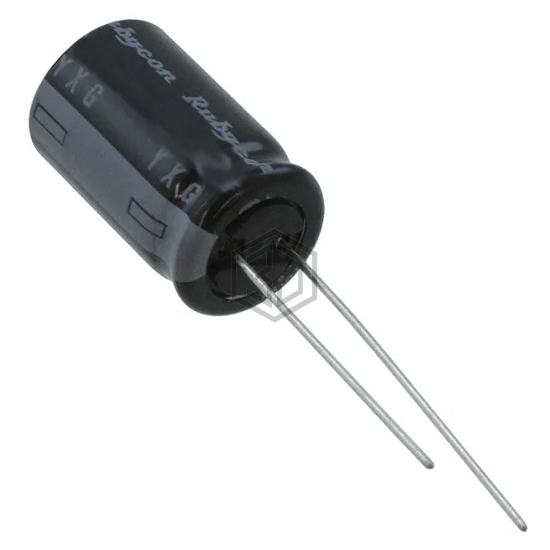

100YXG120MEFCG412.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 120UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,257
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 345 mA @ 120 Hz |
| Ripple Current @ High Frequency | 690 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHE2A121MPT | Nichicon | CAP ALUM 120UF 20% 100V RADIAL | 89% | View |
| UPM2A121MHD6TN | Nichicon | CAP ALUM 120UF 20% 100V RADIAL | 86% | View |
| 672D127F100ET3D | Vishay Sprague | CAP ALUM 120UF 100V RADIAL | 65% | View |
| 860160574014 | Würth Elektronik | CAP ALUM 120UF 20% 35V RADIAL | 63% | View |
| B41858C6127M8 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 50V RADIAL | 59% | View |
| 450LXW120MEFR16X40 | Rubycon | CAP ALUM 120UF 20% 450V RADIAL | 56% | View |
Submit your RFQ for 100YXG120MEFCG412.5X20 and get a quote within 24 hours.
