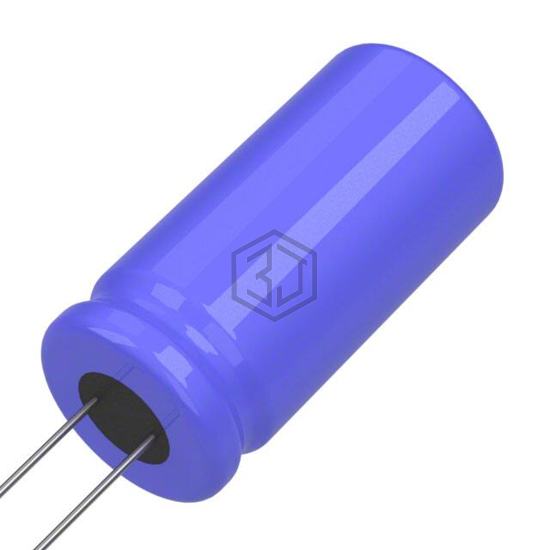

CAP ALUM 120UF 100V RADIAL
672D127F100ET3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 120UF 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 680mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | 170 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D127F100EN4J | Vishay Sprague | CAP ALUM 120UF 100V RADIAL | 100% | View |
| UPM2A121MHD | Nichicon | CAP ALUM 120UF 20% 100V RADIAL | 86% | View |
| 672D127F100ET5D | Vishay Sprague | CAP ALUM 120UF 50V RADIAL | 76% | View |
| EEU-FC2A121SB | Panasonic Electronic Components | CAP ALUM 120UF 20% 100V RADIAL | 75% | View |
| B41890A7127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 35V RADIAL | 57% | View |
| 127KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 120UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for 672D127F100ET3D and get a quote within 24 hours.
