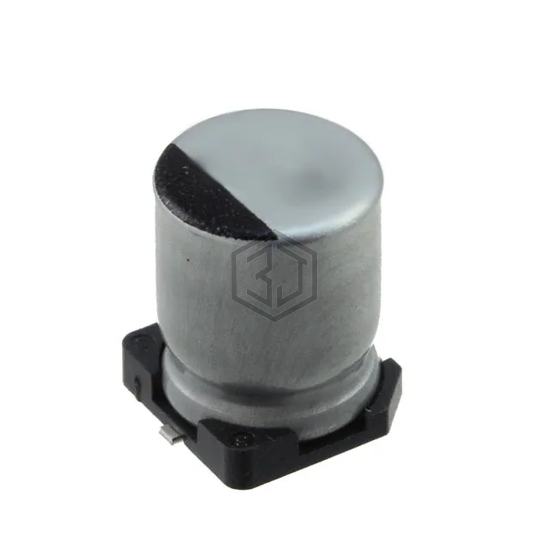

CAP ALUM 10UF 20% 100V SMD
100SEV10M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 7,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 135 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FN2A100L | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V SMD | 98% | View |
| AHA106M2AF24T-F | Cornell Dubilier Knowles | CAP ALUM 10UF 20% 100V SMD | 79% | View |
| EEE-FK1E100AR | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V SMD | 59% | View |
| 106NPS050MEL | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 50V SMD | 56% | View |
| EMVA451ARA100MLH0S | United Chemi-Con | CAP ALUM 10UF 20% 450V SMD | 53% | View |
| ULT2G100MNL1GS | Nichicon | CAP ALUM 10UF 20% 400V SMD | 51% | View |
Submit your RFQ for 100SEV10M8X10.5 and get a quote within 24 hours.
