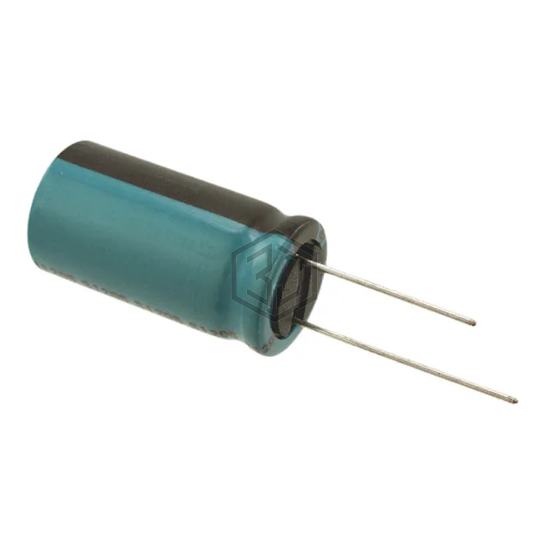

CAP ALUM 220UF 20% 100V RADIAL
100RX30220M16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,045
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1K221MHD | Nichicon | CAP ALUM 220UF 20% 80V RADIAL | 83% | View |
| UBW1J221MHD | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 76% | View |
| 63RX30220M12.5X20 | Rubycon | CAP ALUM 220UF 20% 63V RADIAL | 72% | View |
| 50RX30220M10X20 | Rubycon | CAP ALUM 220UF 20% 50V RADIAL | 67% | View |
| EEU-TP1V271 | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 66% | View |
| 16RX30220MTA8X16 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for 100RX30220M16X25 and get a quote within 24 hours.
