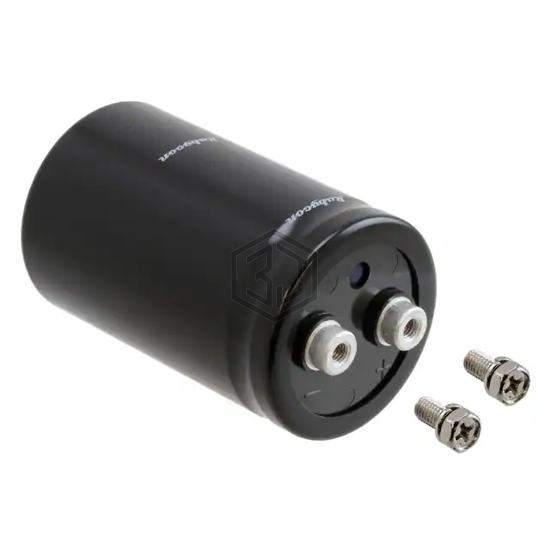

CAP ALUM 2200UF 20% 100V SCREW
100LSW2200MEFC36X50 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,356
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.19 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 2.126" (54.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41554E9228Q000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 100V SCREW | 88% | View |
| PEH169MA4220QB2 | KEMET | CAP ALUM 2200UF 63V SCREW | 70% | View |
| 550C222T250EC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 250V SCREW | 56% | View |
| E32D201HPN222TDB7U | United Chemi-Con | CAP ALUM 2200UF 200V SCREW | 56% | View |
| MAL210452222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 200V SCREW | 54% | View |
| MAL210412222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 200V SCREW | 54% | View |
Submit your RFQ for 100LSW2200MEFC36X50 and get a quote within 24 hours.
