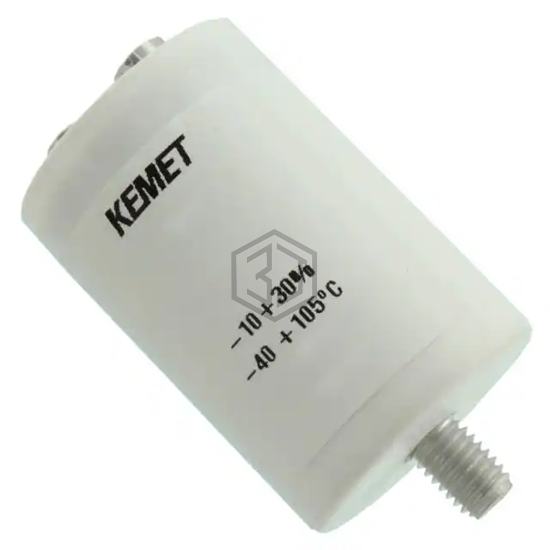

CAP ALUM 2200UF 63V SCREW
PEH169MA4220QB2 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 2200UF 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 46mOhm @ 100Hz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.512" (13.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for PEH169MA4220QB2 and get a quote within 24 hours.
