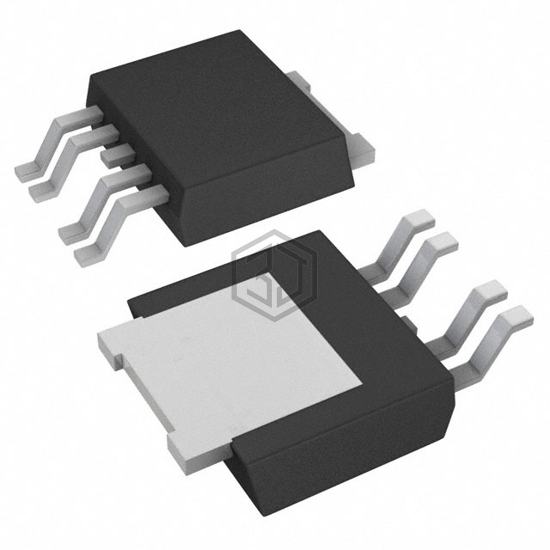

Renesas Electronics America Inc
IC PWR DRIVER N-CHAN 1:1 TO252
UPD166009T1F-E1-AY is a PMIC - Power Distribution Switches, Load Drivers manufactured by Renesas Electronics America Inc. IC PWR DRIVER N-CHAN 1:1 TO252. Key specifications: mounting type Surface Mount, voltage - supply (vcc/vdd) Not Required, package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, current - output (max) 30A.
In Stock: 8,326
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 8V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 30A |
| Rds On (Typ) | 8mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 (MP-3ZK) |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
UPD166009T1F-E1-AY is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VN920-B5H13TR | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 P2PAK | 93% | View |
| VN920SP | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 93% | View |
| VN920SOTR-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 93% | View |
| VN920DB5TR-E | STMicroelectronics | IC PWR SSR HIGH SIDE SGL P2PAK | 93% | View |
| VN920SO-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 93% | View |
| BTC500101TAAATMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO263-7 | 92% | View |
Submit your RFQ for UPD166009T1F-E1-AY and get a quote within 24 hours.
